PowerPlex® Y23 System

View information on global supply logistics
customize-this-small

5-Dye STR Multiplex for Amplification of 23 Y-STR Loci

  • High sensitivity in the presence of female DNA
  • High tolerance for inhibitors
  • Rapid-cycling protocols reduce amplification time by half

Choose a product

Size

Catalog number selected: DC2305

$ 2,100.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More

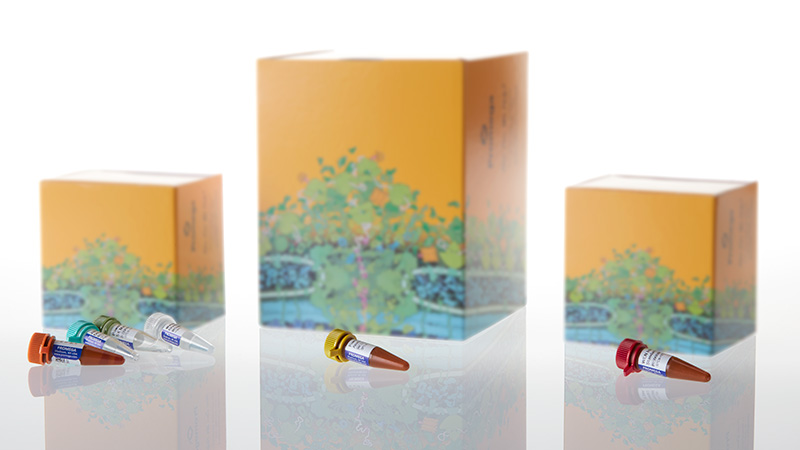

PowerPlex® Y23 System
PowerPlex® Y23 System/50 reactions
$ 2,100.00
Your price: Log in
Change Configuration

Amplify 23 Y-STR Loci in a Single Reaction

The PowerPlex® Y23 System is a 23-loci, 5-color Y-STR multiplex designed for genotyping forensic casework samples, database samples and paternity samples. Higher power of discrimination from 23 loci results in fewer false-positive matches and more meaningful STR analysis. A single kit for both casework and databasing simplifies your workflow.

The PowerPlex® Y23 System allows co-amplification and four-color detection of 23 male-specific STR loci: DYS576, DYS389I/II, DYS448, DYS19, DYS391, DYS481, DYS549, DYS533, DYS438 (penta), DYS437, DYS570, DYS635, DYS390, DYS439, DYS392, DYS643 (penta), DYS393, DYS458, DYS385a/b, DYS456 and Y-GATA-H4.

For laboratories that store their plates up to 48 hours prior to injection, we recommend the use of the optional Stabilizer Reagent (Cat.# DM6571), sold separately.

New!

Learn how to interpret results from Y-STR DNA typing using the Y-Chromosome Haplotype Reference Database (YHRD), a free resource.

Download PDF

ForensicGrade

Promega forensic products are manufactured in alignment with the ISO 18385 standard. This standard ensures minimal risk of human DNA contamination for products used to collect, store and analyze biological materials for forensic purposes. Learn more.

Amplify Only Male DNA

The PowerPlex® Y23 System can successfully amplify trace amounts of male DNA, even in the presence of overabundant amounts of female DNA.

13065MA-W
Amplification of decreasing amounts of male DNA in the presence of 1µg of female DNA with two Y-STR kits: PowerPlex® Y23 System and Yfiler® Plus PCR Amplification Kit. Amplified products were separated on an Applied Biosystems® 3500xL Genetic Analyzer (1.2kV, 24-second injection).

Obtain Full Profiles from the Most Challenging Samples

The PowerPlex® Y23 System is a robust multiplex that is tolerant of many amplification inhibitors, including hematin, tannic acid and humic acid. The robust performance of the kit results in more interpretable data and less need for re-amplification of inhibitor-laden samples.

13066MA-W
Amplification of 500pg of male DNA (PowerPlex® Y23 System) or 1.0ng of male DNA (Yfiler® Plus PCR Amplification Kit) in the presence of increasing amounts of common inhibitors. DNA was amplified for 30 cycles, and amplified products were separated on an Applied Biosystems® 3500xL Genetic Analyzer (1.2kV, 24-second injection).

Streamline Workflows with Direct Amplification

The PowerPlex® Y23 System also is compatible with direct amplification, enabling streamlined Y-STR databasing efforts. Amplification can be successfully performed with sample types such as FTA® card punches as well as pretreated swabs, Bode Buccal DNA Collector™ punches or S&S 903 punches. Faster cycling conditions cut amplification time almost in half. Moreover, reduced sample-processing time and faster cycling conditions provide a significant time savings in every run.

Buccal Sample on FTA® Card
10433MA-W
Amplification of DNA from two 1.2mm punches from buccal cells on an FTA® card (direct amplification) using 27 cycles and the PowerPlex® Y23 System. Amplified products were separated using an Applied Biosystems® 3130xl Genetic Analyzer (3kV, 5-second injection).
Swab Sample with SwabSolution™ Reagent
13067MA-W
Amplification of DNA from a cotton swab pretreated with SwabSolution™ Reagent using 26 cycles and the PowerPlex® Y23 System. Amplified products were separated on an Applied Biosystems® 3130xl Genetic Analyzer (3kV, 5-second injection).
Buccal Sample with PunchSolution™ Reagent
13068MA-W
Amplification of one 1.2mm Bode Buccal DNA Collector™ punch preprocessed with the PunchSolution™ Reagent using 26 cycles and the PowerPlex® Y23 System. Amplified products were separated on an Applied Biosystems® 3130xl Genetic Analyzer (3kV, 5-second injection).

Rapid Processing Solutions for PowerPlex® Systems

The 5X AmpSolution™ Reagent, SwabSolution™ Kit and PunchSolution™ Kit allow fast and simple processing of swabs and punches for analysis with various PowerPlex® Systems, including the PowerPlex® Fusion, 21, 18D, 16 HS, ESX, ESI, CS7 and Y23 Systems. These products are intended for preparation of single-source reference, database and paternity samples where sample purification is unnecessary.

Which Product is Right for Me?

Specifications

You are viewing: DC2305 Change Configuration

What's in the box?

Item Part # Size Concentration Available Separately

2800M Control DNA

DD710A 1 × 25μl 10ng/μl View Product
PowerPlex® Y23 5X Master Mix DP108A 1 × 250μl

Water, Amplification Grade

DW099A 1 × 1,250μl View Product
PowerPlex® Y23 Allelic Ladder Mix DG248B 1 × 25μl

WEN Internal Lane Standard 500 Y23

DG520A 1 × 200μl View Product
PowerPlex® Y23 10X Primer Pair Mix DK209B 1 × 125μl

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

BB

Patents and Disclaimers

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

Specifications

You are viewing: DC2320 Change Configuration

What's in the box?

Item Part # Size Concentration Available Separately

2800M Control DNA

DD710A 1 × 25μl 10ng/μl View Product

Water, Amplification Grade

DW099A 5 × 1,250μl View Product
PowerPlex® Y23 Allelic Ladder Mix DG248B 4 × 25μl

WEN Internal Lane Standard 500 Y23

DG520A 1 × 200μl View Product
PowerPlex® Y23 10X Primer Pair Mix DK209B 4 × 125μl
PowerPlex® Y23 5X Master Mix DP108A 4 × 250μl

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

BB

Patents and Disclaimers

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

Specifications

You are viewing: DM6571 Change Configuration

What's in the box?

Item Part # Size

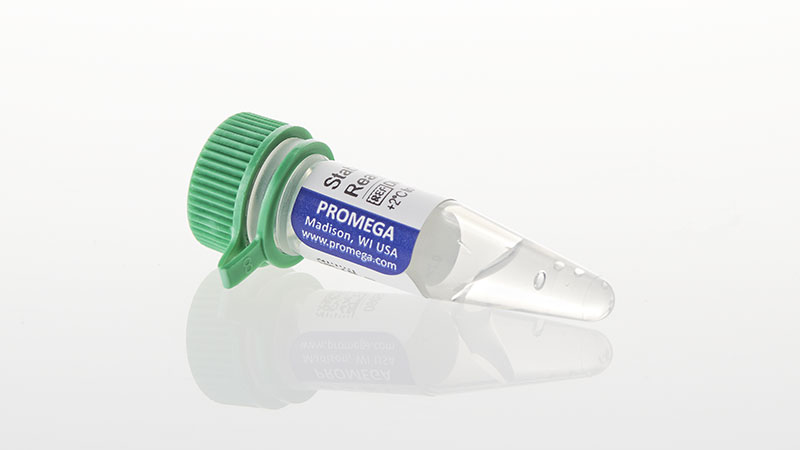

Stabilizer Reagent

DM657A 1 × 0.25ml

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

CC
